Cabinet Air Conditioner Unit Manufacturers

Protection of Electrical Components via Internal Circulation Systems in Extreme Environments

In extreme industrial environments such as high temperatures, heavy dust, or high humidity, ensuring the stable operation of electrical components is a core challenge in industrial thermal management. Shanghai Soouney Refrigeration Equipment Co., Ltd. ensures high-standard IP protection levels by implementing precision-engineered internal circulation systems that achieve physical environmental isolation while providing necessary cooling.

1. How Internal Circulation Ensures IP Protection

The core advantage of cabinet air conditioners lies in their two completely independent air circulation systems: the internal circulation (cold loop) and the external circulation (heat loop).

• Physical Isolation Mechanism: The internal circulation system is responsible for drawing hot air from inside the cabinet into the air conditioner's evaporator for cooling, then delivering the cold air back into the cabinet. This entire process occurs within a completely sealed space.
• Airtight Sealing Design: Shanghai Soouney Refrigeration Equipment Co., Ltd. utilizes high-strength rubber gaskets at the installation interface to ensure a seamless connection between the air conditioner and the cabinet, preventing external dust, moisture, and corrosive gases from entering via installation holes.
• Maintaining IP Ratings: Since internal and external air do not exchange, the interior of the cabinet maintains a positive or constant pressure state. This ensures that the original IP54 or IP55 protection rating of the cabinet is not compromised by the addition of cooling equipment.

2. Industrial Parameter Comparison for Different Environments

The following table illustrates the technical specifications adopted by Shanghai Soouney Refrigeration Equipment Co., Ltd. for various extreme environments:

3. Frequently Asked Questions (FAQ)

Q1: What are the advantages of using a cabinet air conditioner over fans in a workshop with heavy dust?

A: Traditional filter fans are prone to cooling failure due to clogged filters and cannot block ultra-fine dust. The cabinet air conditioner provided by Shanghai Soouney Refrigeration Equipment Co., Ltd. utilizes internal circulation technology to completely isolate electrical components from external dust, ensuring components operate in a clean environment and significantly reducing the risk of short circuits caused by conductive dust.

Q2: Why can Shanghai Soouney Refrigeration Equipment Co., Ltd. products operate continuously in high-temperature environments of 55°C?

A: This is due to the use of high-performance compressors and optimized condensation systems in R&D. As a prominent enterprise in Shanghai's refrigeration sector, Shanghai Soouney Refrigeration Equipment Co., Ltd. strictly adheres to high starting points and stringent manufacturing standards, ensuring their air conditioning systems can withstand extreme T3 conditions and provide stable cooling in steel mills or casting workshops.

Q3: How is the problem of condensation inside the cabinet resolved in high-humidity environments?

A: Shanghai Soouney Refrigeration Equipment Co., Ltd. cabinet air conditioners are equipped with efficient condensate management systems. On one hand, the internal circulation system provides dehumidification during cooling; on the other hand, a specialized drainage channel or condensate evaporation device is designed at the bottom to prevent water accumulation, protecting electrical components from moisture threats.

Key Differences Between Air-Cooled and Water-Cooled Industrial Cooling Systems Chillers

Selecting the right cooling architecture is critical for large-scale industrial efficiency. Shanghai Soouney Refrigeration Equipment Co., Ltd., a high-tech enterprise integrating R&D and manufacturing, provides both air-cooled and water-cooled solutions designed to meet stringent global standards.

1. Air-Cooled vs. Water-Cooled Systems

The fundamental difference lies in how heat is rejected from the system.

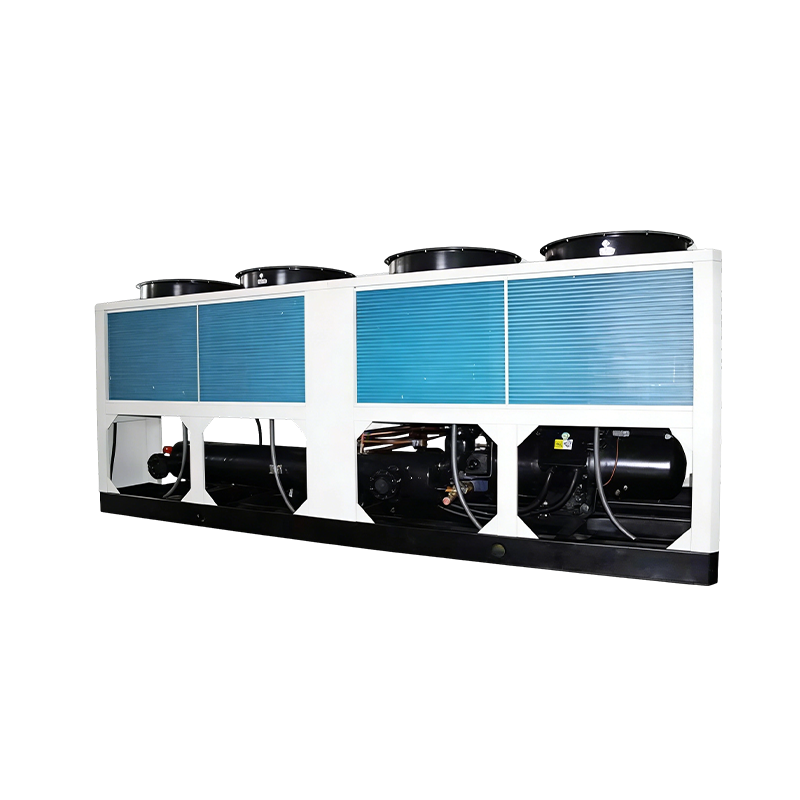

• Air-Cooled Chillers: Use ambient air to cool the condenser using fans. These systems are preferred for their simplicity, lower installation costs, and suitability for areas with water scarcity.

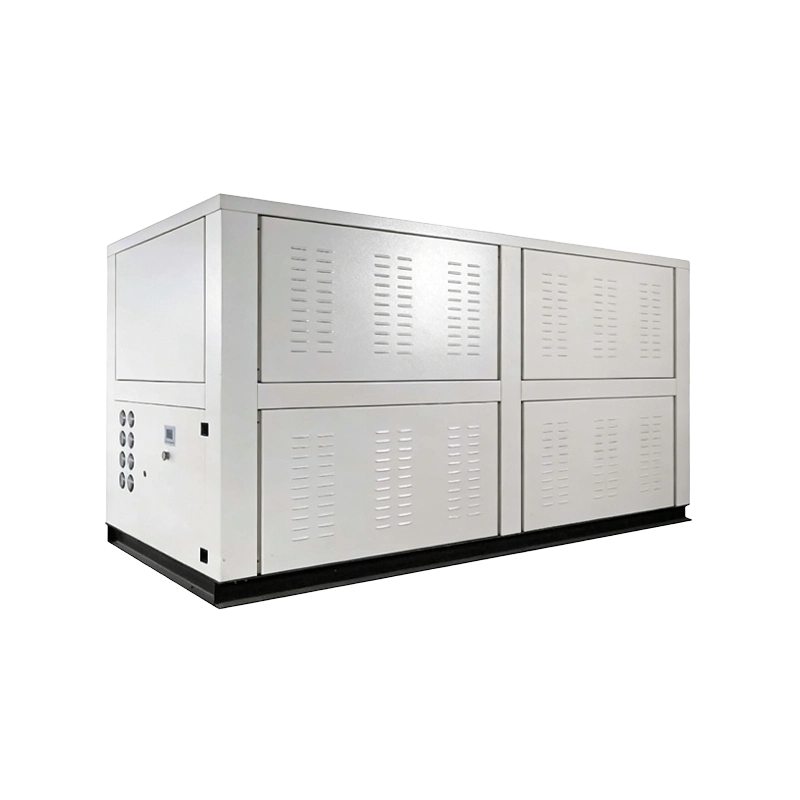

• Water-Cooled Chillers: Use water from an external cooling tower to reject heat. These are typically more energy-efficient and are the standard for large-scale factories where high-capacity, continuous cooling is required.

2. Technical Parameter Comparison

Based on the engineering standards upheld by Shanghai Soouney Refrigeration Equipment Co., Ltd., the following table compares the two systems across key operational metrics:

3. Frequently Asked Questions (FAQ)

Q1: Which system is better for factories with limited indoor space?

A: Air-cooled industrial cooling systems chillers are the ideal choice. Since Shanghai Soouney Refrigeration Equipment Co., Ltd. designs these units with compact footprints and integrated fans, they can be installed outdoors or on rooftops, saving valuable internal factory floor space while maintaining high performance.

Q2: How does Shanghai Soouney Refrigeration Equipment Co., Ltd. ensure the durability of water-cooled chillers?

A: Adhering to the principle of "quality and innovation," Shanghai Soouney Refrigeration Equipment Co., Ltd. uses high-grade corrosion-resistant materials for heat exchangers. This is vital for water-cooled systems to prevent scale buildup and corrosion, ensuring a longer operational life even in demanding large-scale industrial environments.

Q3: Is a water-cooled system always more cost-effective in the long run?

A: Generally, yes, for large-scale operations. While the initial investment is higher, the superior energy efficiency of the solutions provided by Shanghai Soouney Refrigeration Equipment Co., Ltd. leads to significantly lower monthly utility bills. However, in regions where water costs are high or environmental regulations are strict, our air-cooled models offer a highly competitive and reliable alternative.
